MEC V-Bond BO-7790V Flood-immersion BO-7710V Spray
Features of MEC V-Bond
- MEC V-Bond is a H2SO4-H2O2 microetching agents which is devoloped as alternative to black oxide treatment to reduce enviroment impact.
- Performs etching on copper surfaces to create a roughened topography (anchor effect) while forming an organic copper film on the surface (primer effect) to achive the high adhension and heat resistance of resin.
- Helps to achieve high adhesion to FR-4, as well as high Tg or halogen-free materials.
- We can offer the most suitable chemical solution according to the customer's application, such as BO-7790V for flood-immersion treatment and BO- 7710V for spray treatment.
Surface topography
| BO-7790V 2.0μm | BO-7710V 1.0μm |
|---|---|
 |
 |

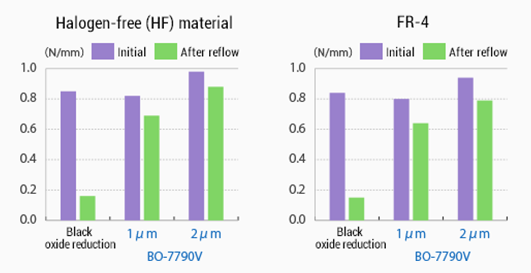

Peel strength
Cross-section observation
| Initial | |
|---|---|
| Black oxide reduction | BO-7790V (2.0μm etching) |
 |
 |
| After reflow | |
|---|---|
| Black oxide reduction | BO-7790V (2.0μm etching) |
 |
 |
- After reflow：80℃,85%RH,96hr→Pb free reflow（Max.260℃）2pass
Pre-treatment for pre-lamination treatment
-
Pre-treatment
MEC V-Bond CB-7612
MECBRITE CA-5370,
CA-5372 -
Pre-lamination treatment
MEC V-Bond BO-7790V
MEC V-Bond BO-7710V
MEC V-Bond CB-7612 and MECBRITE CA-5370 and CA-5372 are pre-treatment agents that maximize the effect of MEC V-Bond by removing rust or dirt on copper surfaces. MECBRITE CA-5370 and CA-5372 are particularly effective in removing smut after pattern formation.
